Pro repair stand with double clamp, quick release
More About Product
- Repair bike stand with fixed plate and two clamps is designed for service workshops and more demanding users.
- Stand enables work for two mechanics at the same time on two bikes.
- The new plastic cup enables storage of tools and spare parts.
- Fixed plate is ergonomically designed. Maximum load capacity is 45kg, which enables to service heavier bikes.

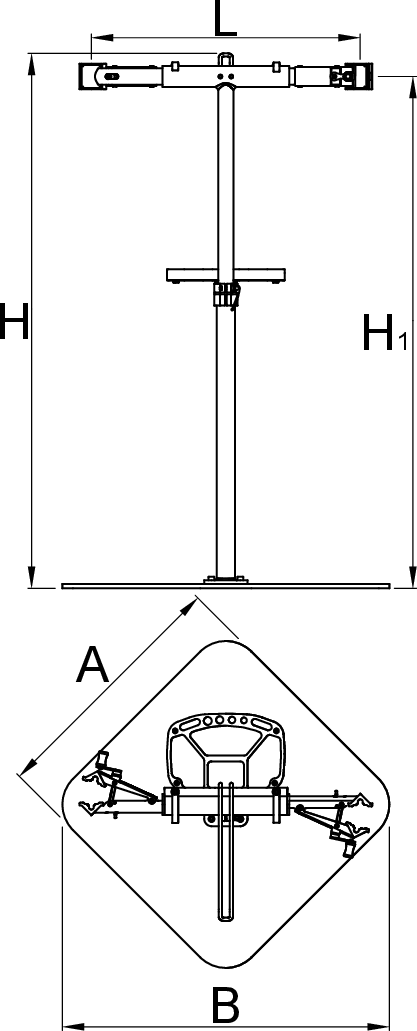

- Stand is adjustable by height between 947 and 1570 mm.
- Weight of the stand is 56,5kg.
- Additional accesories - paper roll holder.
- Clamp can grip tubes of any shape, with diameter of minimum Ø22mm to maximum Ø60mm.
- Replaceable rubber jaw covers, item 1693.11
- Code 623228 article 1693C1 is stand with two jaws with spring and without fixed plate
- Code 623224 article 1693CS is stand with fixed plate and two jaws with adjustable nut
- Code 623229 article 1693CS1 is stand with two jaws with adjustable nut and without fixed plate
- Code 623230 article 1693CS2 is stand with two jaws(with spring and adjustable nut) and without fixed plate
- Repair bike stand 1693C1,1693CS1 in 1693CS2 is designed for floor or ceiling mount.
* Images of products are symbolic. All dimensions are in mm, and weight in grams. All listed dimensions may vary in tolerance.
