Pro repair stand with double clamp, auto adjustable

1693C

Product attributes

  • Repair bike stand with fixed plate and two clamps is designed for service workshops and more demanding users.
  • Stand enables work for two mechanics at the same time on two bikes.
  • The new plastic cup enables storage of tools and spare parts.
  • Fixed plate is ergonomically designed. Maximum load capacity is 45kg, which enables to service heavier bikes.
  • Weight of the stand is 56,5kg.
  • Additional accesories - paper roll holder.
  • Suitable for tubes with diameter of min. Ø24 mm and max. Ø32 mm.
  • Replaceable rubber jaw covers, item 1693.11
  • Code 623228 article 1693C1 is stand with two jaws with spring and without fixed plate
  • Code 623224 article 1693CS is stand with fixed plate and two jaws with adjustable nut
  • Code 623229 article 1693CS1 is stand with two jaws with adjustable nut and without fixed plate
  • Code 623230 article 1693CS2 is stand with two jaws(with spring and adjustable nut) and without fixed plate
  • Repair bike stand 1693C1,1693CS1 in 1693CS2 is designed for floor or ceiling mount.
https://uniortools.com/res/katimages/248409.png

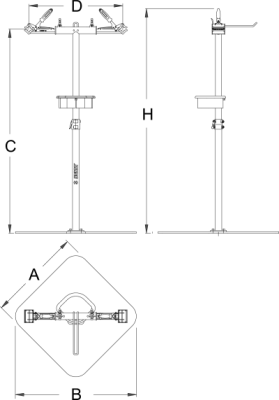

CodeHeightTube diametreMinimum additional lenghtMaximum additional lenghtThicknessWidthweight-- prazen stolpec --
6225811680704985157070090556500 +
* Images of products are symbolic. All dimensions are in mm, weight in grams.

Usage (pictures)

To adjust bike stand head, release lever (C) and adjust/rotate the stand head (D).

Adjust opened jaws (E) to the tube of bike. Turn handle (F) until jaws accommodate frame whole tube. Adjust final clamping pressure, to avoid damage to bike, do not over tighten.

Firmly hold bike frame (G). Flip handle (H) to quickly release tube from jaws.
