Pro repair stand with double clamp, manually adjustable

1693B

Product attributes

  • Repair bike stand with fixed plate is designed for service workshops and every day use.
  • Fixed plate is ergonomically designed. Maximum load capacity is 30kg, which enables the servicing of heavier bikes.
  • Suitable for tubes with diameter of min. Ø24 mm and max. Ø32 mm.
  • weight of the stand is 36kg
  • Replaceable rubber jaw covers, item 1693.11
  • Code 623226 article 1693B1 is stand with jaw with spring and without fixed plate
  • Code 623223 article 1693BS is stand with fixed plate and jaw with adjustable nut
  • Code 623227 article 1693BS1 is stand with jaw with adjustable nut and without fixed plate
  • Repair bike stand 1693B1 and 1693BS1 is designed for floor or ceiling mount.
#title#
CodeMinimum additional lenghtMaximum additional lenghtWidthThicknessMaximum heightweight-- prazen stolpec --
6214719851570726572170038600 +

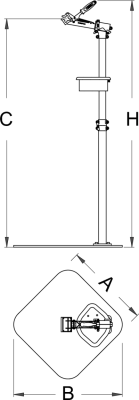

* Images of products are symbolic. All dimensions are in mm, weight in grams.

Usage (pictures)

To adjust bike stand height, release lever (A) and adjust the height of stand tube (B).

To adjust bike stand head, release lever (C) and adjust/rotate the stand head (D).

Adjust opened jaws (E) to the tube of bike. Turn handle (F) until jaws accommodate frame whole tube. Adjust final clamping pressure, to avoid damage to bike, do not over tighten.

Firmly hold bike frame (G). Flip handle (H) to quickly release tube from jaws.

Spare parts

  • New advanced technology

    The use of new technological methods and top quality materials result in tools with a long life span, safety designs ensure repair jobs without damages, customized solutions, excellent effectiveness, modern materials and ergonomic design provide good looks and safe use.
  • Customized solutions for excellent results

    Our solutions offer adaptability to the bicycle parts of all producers. Our tradition, our own design, and constant technical development and modern technology keep us one step ahead.
  • Excellent durability

    Unior hand tools finish many jobs faster and make working in tight areas easier. They are adapted to work on the latest bicycle models.
